Differential Pressure Transmitter Metal Capacitance dp Pressure Sensors
Product Description

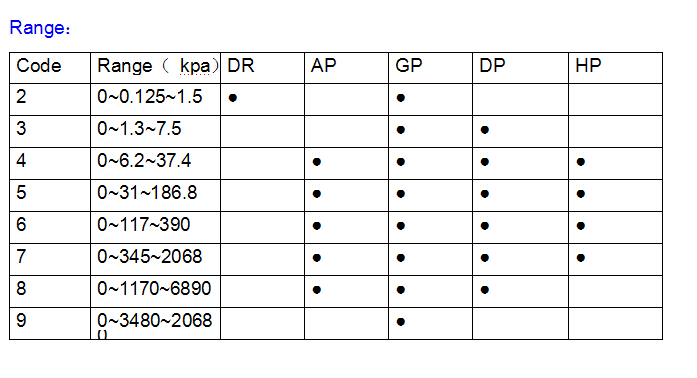

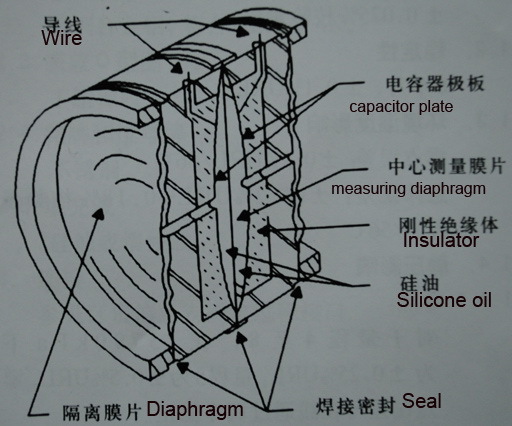

Product description: The medium pressure is transferred to the test diaphragm in the middle of δ room by the barrier diaph ragm and Silicon oil, as the test diaphragm is tight flexible element, it produce displacement following the pressure differential. The displacement of the diaphragm and pressure differential are in direction proportion, the max disp lacement is 0.1mm, It is tested by the by the capacitiveplat on the both side, Then the differential cap acitor between the test diaphragm and capacitive board switched to standard output by the Circuit Cu rrent. Range Capacitive Pressure Sensor price | Product name | Code | Range |
|
capacitive pressure sensor | 4E | 0-6.2-37.4kPa |
| 5E | 0-31-186.8kPa | |
| 6E | 0-117-690kPa | |
| 7E | 0-345-2068kPa | |
| 8E | 0-1170-6890kPa | |
| 3E | 0-1.3-7.5kPa | |
| 9E | 0-3480-20680kPa | |
| 0E | 0-6890-41370kPa | |
| 2E | 0-0.125-1.5kPa
|
Performance: | Item | Para meters |
| Accuracy | ±0 . 1 % |
| Stability | ±0 . 2% ( 12 mo n th s) |
| Temp range | -40℃ ~+ 14 0 ℃ |
| Temp affect | ze ro erro r: ±0 . 25 %/ 55 ℃ |
| ra ng e erro r: ±0. 5 %/ 55 ℃ | |
| Static pressure | DP 13.8MPa HP 25MPa DR 6.9MPa |
| Overpressure limit | AP GP 13.8MPa DR DP HP |
| Diaphragm material | 316Lss Hastelloy C Tant alum |
| Model | Stability | Temp limit | Pressure limit | Range |
| AT3051DP | ±0 . 1 %UR L | -40~14 0 ℃ | 13.79MPa | 1.3~6890KPa |
| AT3051GP | ±0 . 1 %UR L | -40~14 0 ℃ | 13.79MPa | 1.3~41370KPa |
| AT3051DR | ±0 . 2 %UR L | -40~14 0 ℃ | 6.9MPa | 0.125~1.5KPa |
| AT3051HP | ±0 . 1 %UR L | -40~14 0 ℃ | 31.02MPa | 6.2~2068KPa |
| AT3051AP | ±0 . 1 %UR L | -40~14 0 ℃ | 13.79MPa | 6.2~6890KPa |
| AT3051LT | ±0 . 2 %UR L | -40~14 0 ℃ |
| 635~70380mmH2O |
| AT3051DP | ±0 . 1 %UR L | -40~14 9 ℃ | 13.79MPa | 635~6895KPa |
| AT3051GP | ±0 . 1 %UR L | -40~14 9 ℃ | 51.71MPa | 635~6895KPa |
| AT1151DP | ±0 . 1 %UR L | -40~14 0 ℃ | 13.79MPa | 1.3~6890KPa |
| AT1151GP | ±0 . 1 %UR L | -40~14 0 ℃ | 51.71MPa | 1.3~41370KPa |
| AT1151DR | ±0 . 2 %UR L | -40~14 0 ℃ | 6.9MPa | 0.125~1.5KPa |
| AT1151HP | ±0 . 1 %UR L | -40~14 0 ℃ | 31.02MPa | 6.2~2068KPa |
| AT1151AP | ±0 . 1 %UR L | -40~14 0 ℃ | 13.79MPa | 6.2~6890KPa |
| AT1151LT | ±0 . 1 %UR L | -40~14 0 ℃ |
| 635~70380mmH2O |
| AT1151DP | ±0 . 1 %UR L | -40~14 0 ℃ | 13.79MPa | 6.2~6890KPa |
| AT1151GP | ±0 . 1 %UR L | -40~14 0 ℃ | 13.79MPa | 6.2~6890KPa |
| AT2088 | ±0 . 5 %UR L | -40~12 0 ℃ |
| -0.1~40KPa |
| SP | ±0 . 5 %UR L | -20~80 ℃ |
| -0.1~40MPa |
| SH-A | ±0 . 5 %UR L | -20~80 ℃ |
| 0~200m |

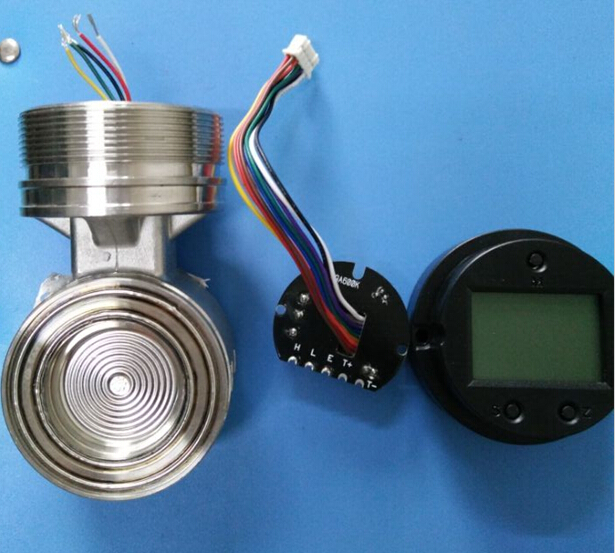

3-wire metal capacitance pressure sensor:
Product details:
If you are interested in metal capacitance type pressure sensor dp cell sensors , please contact me!!
Differential pressure transmitter metal capacitance dp pressure sensors Contact us if you need more details on Dp Pressure Sensors. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Differential Pressure Sensors、Metal Capacitance Pressure Sensors. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Capacitive Pressure Sensor
